Gray Dual Led Digital Panel Watt Meter , Panel Mount Voltage Display 4 Digits Led

Wei Dian Union(Hubei) Technology Co.,Ltd.
Contact Now

Gray Dual Led Digital Panel Watt Meter , Panel Mount Voltage Display 4 Digits Led

  • 1
  • 2

Brand Name : WDLYCH

Model Number : WD-AU3

Certification : ISO9001:2000/ CE

Place of Origin : Wuhan, Hubei(China)

MOQ : 10PCS

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 30,000pcs/month

Delivery Time : 7 days after down payment

Packaging Details : Standard export carton/Pallets

Product Name : Digital Voltmeter

Measurement : AC Voltage

Display : 4 Digits LED

Phase : 3- Phase

Accuracy : 0.5%

Color : Gray

Dimension : 96*96mm

Warranty : 18 Months

Contact Now

Gray Dual Led Digital Panel Watt Meter , Panel Mount Voltage Display 4 Digits Led





1. Functions:



- Measure three phase AC voltage in low voltage distribution system;

- Suitable for replacing pointer meter;

Suitable for HV & HV voltage system;

- High accuracy IEC62053-21 0.5%;

- Built in MODBUS-RTU via RS485 port;

- Optional analog output 4-20mA / 0-20mA



2. Features:



- Clear digital display, easy for reading;

- Programmable voltage ratio;

- True RMS measurement;

- High protection level;

- Wide temperature working environment.



3. Application:



- Panel mounted meter;

- AC voltage measurement.





4. Dimension:



Gray Dual Led Digital Panel Watt Meter , Panel Mount Voltage Display 4 Digits Led

  Units: mm

Model

Panel

(A1*A2)



Installation

(a1*a2)



Cut-out

(L1*L2)



Depth

 (D1)



Thickness

 (D2)



Installation board

   thickness

      D3(Max)



Reserved Size
Level(X) Vertical(Y)
WD-2U3 120*120 110*110 111*111 93 15 5 10 20
WD-9U3 96*96 91*91 92*92 93 13.5 10 40 20
WD-3U3 80*80 75*75 76*76 93 12.5 5 10 20
WD-AU3 72*72 67*67 68*68 93 12.5 5 10 20
WD-DU3 48*48 44.5*44.5 45*45 81  9.5 5 40 20

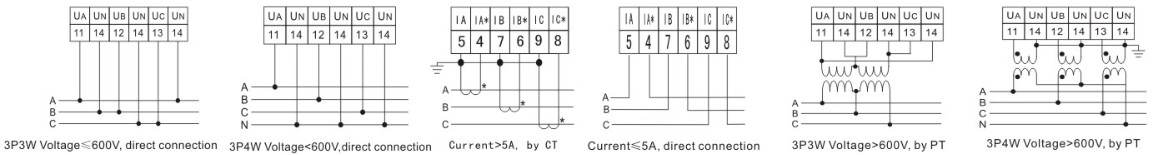

5. Wiring Diagram:



 Gray Dual Led Digital Panel Watt Meter , Panel Mount Voltage Display 4 Digits Led



6. Technical Parameters:



  •    Electric Features:



Accuracy  0.5%(Default), 0.2%
Display Mode  LED display
Input

Rated Value AC110V, 450V, 690V
Overload  Continuous: 1.2s; Instant: 10s
Frequency  45-65Hz
Power Supply  Working Range AC/DC 80-270v
Consumption  <1VA
Digital Input   Dry contact mode
Relay Output    Contact Capacity: AC5A/250V
Analog Output Current Output DC4-20mA/ 0-20mA
Voltage Output DC0-5V, 1-5V, etc
Communication  RS485 interface, Modbus-RTU Protocol
Protection  IP64(Front panel), IP20(Meter body)





  • Environment





Working Temperature -25-55
Storage Temperature  -20-75
Relative Humidity  93RH
Pollution Degree 2
Measuring Type CAT III
Insulating Ability

Between power and input or output ≥AC2kV

Between input and output ≥1kV





7. FAQ:



Q: Are you trading company or manufacturer ?



A: We are factory and trading company at same time. We have all kinds of resources in the electrical industry. All the products you need can be supply with lowest price.



Q: How long is your delivery time?



A: Generally it is 7 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?



A: Sample is available but customers have to pay.



Q: What is your terms of payment ?



A: Payment<=1000USD, 100% in advance.



Q: How to send a inquiry for more information ?



A: You can find our contact information on the front page of the shop.
